Geologic Cross-Section With Monitoring Wells

Geologic Cross-Section With Monitoring Wells

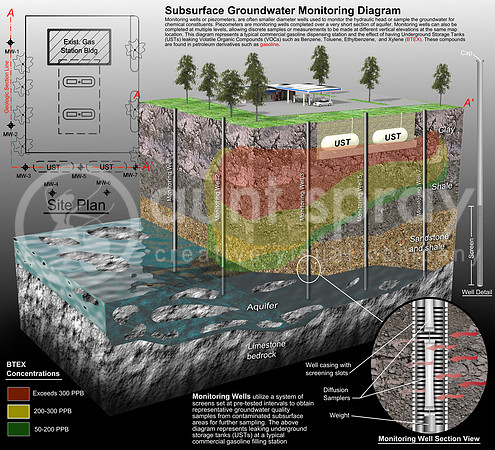

A geologic 3-D illustration of a system of monitoring wells arranged around a typical commercial gasoline dispensing station with leaking underground storage tanks (USTs). The illustration depicts contamination concentrations in the strata, monitoring well details and brief explanations of the system.
